Steel Billets Business

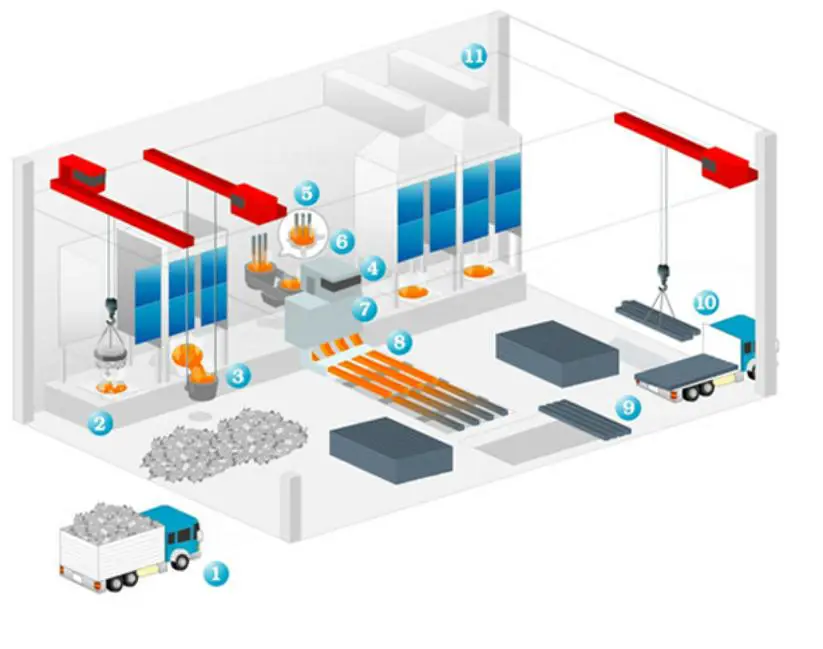

Production Process

We use technology to streamline the production process.
  1. Scrap
  2. Electric
  3. Ladle
  4. Spectrometer
  5. Ladle Fumace
  6. Spectrometer
  7. Automate Continuous Casting Machine
  8. Cutting Machine
  9. Billets
  10. Distribution
  11. Bag Fiter

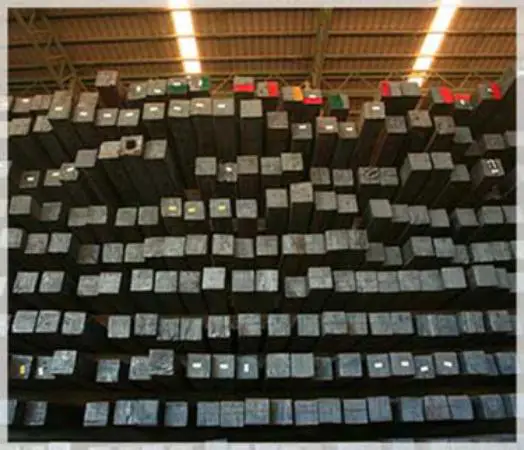

Steel Billet

Product

SR24/3SP
Size: 100x100, 120x120, 150x150
Length: 6 and 12 meters

SD30/5SP
Size: 100x100, 120x120, 150x150
Length: 6 and 12 meters

SD40
Size: 100x100, 120x120, 150x150
Length: 6 and 12 meters

Make to order
Each billet is marked with a corresponding heat number, date of production and billet number for easy tracking.

RoundSteel Billets (Specification)

Grade Size (mm.) Length (Meters)
SR24/3SP 100 x 100
120 x 120
150 x 150
6 and 12 meters
6 and 12 meters
6 and 12 meters
SD30/5SP 100 x 100
120 x 120
150 x 150
6 and 12 meters
6 and 12 meters
6 and 12 meters
SD40 100 x 100
120 x 120
150 x 150
6 and 12 meters
6 and 12 meters
6 and 12 meters

Steel Grade Specification Chemical Composition % By Weight

STEEL
GRADE
%C %Si %Mn %P %S %Cr %Al %Cu %CE REMARK
SS400 0.14-0.23 0.30 Max 0.40-0.70 ≤ 0.050 ≤ 0.050 ≤ 0.50 ≤ 0.040 ≤ 0.50 0.35 Max
3SP 0.17-0.25 0.30 Max 0.40-0.60 ≤ 0.045 ≤ 0.045 ≤ 0.50 ≤ 0.040 ≤ 0.50 0.35 Max
SR24 0.20-0.28 0.15-0.30 0.40-0.80 ≤ 0.050 ≤ 0.050 ≤ 0.50 ≤ 0.040 ≤ 0.50 0.42 Max
SD30 0.25-0.30 0.15-0.30 0.40-0.80 ≤ 0.050 ≤ 0.050 ≤ 0.50 ≤ 0.040 ≤ 0.50 0.50 Max
SD40 0.30-0.37 0.15-0.40 0.40-0.90 ≤ 0.050 ≤ 0.050 ≤ 0.50 ≤ 0.040 ≤ 0.50 0.55 Max
5SP 0.28-0.37 0.35 Max 0.40-0.90 ≤ 0.050 ≤ 0.050 ≤ 0.50 ≤ 0.040 ≤ 0.50 0.55 Max
